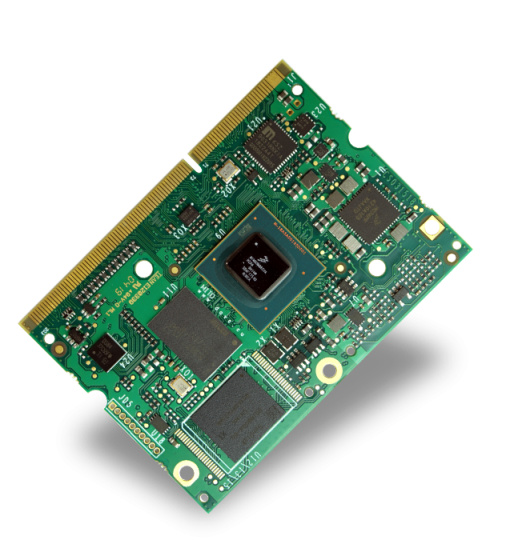

The MITO 8M SOM product is based on the recent NXP i.MX8M application processor. Thanks to this solution, customers have the chance to save time and resources by using a compact solution that permits to reach scalable performance that perfectly fits the application requirements avoiding complexities on the carrier board.

i.MX8M SOM is compatible with i.MX6 SOM solution AXEL Lite. Customers that want to migrate from previous i.MX6 solution to this new will have a zero-effort approach with the great advantage of performance.

Also, it is designed in order to keep full compatibility with the LITE Line CPU modules, for design where quality and reliability are important factors.

The use of this processor enables extensive system-level differentiation of new applications in many industry fields, where high-performance and extremely compact form factor (67,5 mm x 43 mm) are key factors. i.MX8M SOM offers great computational power, thanks to the rich set of peripherals, the scalable ARM Cortex-A53 together with a large set of high-speed I/Os such as dual PCle and USB3.

iMX8 SOM enables designers to create smart products suitable for harsh mechanical and thermal environments, allowing for the development of high computing and reliable solutions.

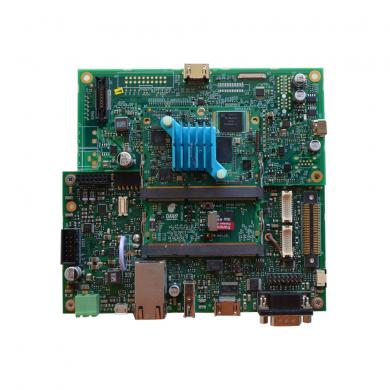

Yes. MITO 8M Evaluation Kit includes a SOM and all necessary for the fast and easy evaluation.

The MITO 8M Evaluation Kit includes:

1. the hardware with all useful items (power supply, cables, etc)
2. The software pre-installed in a SD card
3. The right to access to DAVE Embedded Systems’ repositories
4. A live session (typically 4 hours) with tech team from DAVE Embedded Systems for:
   a) Virtual Machine configuration and first Hello World
   b) Evaluation board schematics review for fast hardware design startup
5. Carrier board design review: once your board schematics are ready, we are available for review the design together and provide a first Device Tree Structure example based on your design

MITO 8M SOM main features are:

• Unmatched performances thanks to Multimedia MX8M ARM Cortex A53 MPCore + Cortex-M4 technology
• eMMC or NAND SLC on board
• dual LVDS output on board
• Enabling massive computing applications thanks to wide range LPDDR4 RAM memory up to 2GB (4GB OPT)
• Compatibility with i.MX6 AXEL Lite SOM
• Reduced carrier complexity: dual PCIe, dual MIPI, SDIO, Gb ETH, GPIOs, 3xSAI
• Expansion Connector for 100% SOC Usability
• H264/H265 Video encoding and decoding
• Available NAND interface for cost optimization

On this page you can find MITO 8M SOM 3D model.

On this page you can find MITO 8M SOM block diagram.

On this page you can find MITO 8M SOM hardware documentation.

On this page you can find all the MITO 8M SOM marketing documentation available.

MITO 8M SOM module part number is identified by the digit-code table that you can find here.

Yes, we have our Longevity Program based on Silicon Vendors' Longevity Program. For MITO 8M see this page.

DAVE Embedded Systems' goal is to grant the production continuity to its customer including the possibility to redesign its products in order to maintain the product continuity.

If you want to request support to our technical team please fill this form. After the submission, a ticket will be assigned. Our technicians will look after your request and, typically, they will respond you via email within 24 hours.

DAVE Embedded Systems provides a very efficient technical support via a helpdesk ticketing system. In this video we show you all the ways you can get help from us: How to contact DAVE technical support.

MITO 8M SOM processor and memory subsystem are composed by the following components:

• i.MX8M SoC application processor
• Power supply unit
• LPDDR4 memory bank
• eMMC or NAND flash banks
• Connectors:
  • 1 x 204 pins SO-DIMM edge connector with interfaces signals
    • partially compatible with AXEL Lite SOM
  • 2 x 25 pins One Piece mating board layout Expansion

On this page you can find a description of the main MITO 8M components (processor info, RAM memory bank, eMMC flash bank, NAND flash bank, memory map and power supply unit).

Yes. The PCB version is copper printed on PCB itself and the serial number is printed on a white label (please see here for further information). Also, a ConfigID is used by software running on the board for the identification of the product model/hardware configuration.

On MITO 8M SOM ConfigID is stored on OTP memory.

On this page you can find the connectors and pinout description of the MITO 8M module.

MITO 8M SOM supports the following peripherals:

• Audio
• Ethernet
• HDMI
• LVDS
• MIPI
• SDIOs
• SPI
• I2C
• UARTs
• USB
• NAND
• PCI Express
• GPIOs
• Real Time Clock
• Watchdog

Implementing correct power-up sequence for iMX8M processors is not a trivial task because several power rails are involved. MITO 8M SOM simplifies this task by embedding all the needed circuitry. Here you can find a simplified block diagram of PSU/voltage monitoring circuitry.

The PSU is composed of two main blocks: 1) power management integrated circuit 2) additional generic power management circuitry that completes PMIC functionalities. It generates the proper power-up sequence required by the SOC processor and surrounding memories and peripherals and synchronizes the powering up of carrier board in order to prevent back power.

The typical power-up sequence is the following:

1. 3.3VIN main power supply rail is powered
2. SNVS domain signals are pulled-up (unless carrier board circuitry keeps this signal low for any reason)
3. CPU_PORn (active-low) is driven low by PMIC
4. RTC_RESET_B are internally released after 200ms
5. VDD_SOC regulator starts and enables the VDD_ARM and PMIC regulators
6. PMIC initiates power-up sequence needed by iMX8M processor
7. BOARD_PGOOD goes up when NVCC_3V3 (CPU I/O power rail) is ready
8. CPU_PORn is deasserted after the last regulator to bring the processor out of reset

See this page for further information.

On this page you can find a block diagram of reset scheme and voltage monitoring for MITO 8M SOM.

The boot process begins at Power On Reset (POR) where the hardware reset logic forces the ARM core to begin execution starting from the on-chip boot ROM.

The boot ROM:

• determines whether the boot is secure or non-secure
• performs some initialization of the system and clean-ups
• reads the mode pins to determine the primary boot device
• once it is satisfied, it executes the boot code

For further information about MITO 8M SOM boot options, please check out more by clicking here.

JTAG signals are routed to a dedicated connector on the MITO 8M PCB. The connector is placed on the top side of the PCB, on the right side.
Check out this page for further information.

On this page you can find MITO 8M SOM maximum ratings, recommended ratings and power consumption.

The MITO 8M SOM is designed to support the maximum available temperature range declared by the manufacturer. The customer shall define and conduct a reasonable number of tests and verification in order to qualify the DUT capabilities to manage the heat dissipation. Any heatsink, fan etc shall be defined case by case.

DAVE Embedded Systems' team is available for any additional information, please contact sales@dave.eu or check this page for further information.

On this page you can find the mechanical characteristics of the MITO 8M module.

Yes. DAVE Embedded Software Kit Linux (DESK-MX8M-L in short) provides all the necessary components required to set up the developing environment to:

• build the bootloader (U-Boot)
• build the Linux operating system
• build Linux applications that will run on the target
• build the Yocto BSP

Click here for further information about DESK-MX8M-L.

The Embedded Software kit is composed by:

• VirtualBox virtual machine containing
  • toolchain and SDK
  • U-Boot bootloader sources
  • Linux kernel sources
  • Root file system images
• git repositories access for registered users allowing the update of the following repo
  • u-boot
  • linux
  • Yocto BSP
• SD card with the complete environment for
  • the DVDK OVA file (i.e. the Virtual Machine file to be imported into VirtualBox application)
  • a complete Kit bootstrap and demonstration (with u-boot, kernel and root file systems binaries already configured)

DAVE Embedded Systems strongly recommend to register your kit. Registration grants access to reserved material such as source code and additional documentation.

To register your kit, please send an email to helpdesk@dave.eu providing the kit P/N and S/N.

Check this page for all the DESK-MX8M-L (Software Development Kit for MITO 8M SOM) releases information.

DAVE Embedded Systems' standard DVDK Virtual Machine contains all the required software and documentation to start developing Linux applications on the MITO 8M platforms.
In particular, DESK-MX8M-L provides a virtual machine, called DVDK.

For further information, see this page.

Yes. ConfigID is a new feature of DAVE Embedded Systems products. Its main purpose is providing an automatic mechanism for the identification of the product model and configuration. In simple words, model identification means the capability of reading a numerical code, stored in an available device (SOC's OTP , I2C EEPROM, 1-wire memories, protected NOR flash, etc.)

With ConfigID, we aim at completing the hardware configuration information that the software can't normally auto-detect (i.e. RAM chip version,...), implementing a dedicated reliable detect procedure and, when required, overriding the auto-detected hardware configuration information.

This article describes how the ConfigID is implemented in the products supported by the DESK-MX8M-L Linux Kit.

An additional attribute is UniqueID, which is a read-only code which univocally identifies a single product and is used for traceability.

For further information, see this page.

Yes. This configuration is very helpful during the software development (both for kernel and applications). The kernel image is downloaded via TFTP while the root file system is remotely mounted via NFS from the host.

For further information, see this page.

On this page you will find the detailed explanation on how to keep in sync and up to date the source trees with DAVE Embedded Systems' repositories on DESK-MX8M-L (Software Development Kit for MITO 8M SOM).

Access to DAVE Embedded Systems' git repositories is granted to the development kit's owners only. Please refer to our video tutorial How to access DAVE Embedded Systems' git repositories for detailed instructions on how to get access.

See this page for further information on how to build the Boot image on DESK-MX8M-L (Software Development Kit for MITO 8M SOM).

See this page for further information on how to build the U-Boot bootloader with make on DESK-MX8M-L (Software Development Kit for MITO 8M SOM).

See this page for further information on how to build the Linux kernel on DESK-MX8M-L (Software Development Kit for MITO 8M SOM).

Please refer to our video tutorial How to add a new kernel device driver (build the kernel) for detailed instructions on how to do it.

As known, in addition to a bootloader and the o.s. kernel, an embedded Linux system needs a root file system to operate. The root file system must contain everything needed to support the Linux system (applications, settings, data, etc.). The root file system is the file system that is contained on the same partition on which the root directory is located.

DESK-MX8M-L provides one (or more) pre-built root file system, that can be used during the evaluation/development/deployment cycle.

Check this page for further information on how to build the Yocto BSP on DESK-MX8M-L.

Check this page for further information on how to create a bootable microSD for the DESK-MX8M-L (Software Development Kit for MITO 8M SOM) by using a simple bash script.

In this video tutorial we guide you step by step in creating a bootable SD card from scratch.

Yes. On this page you can find an example on C code displaying the classic Hello World! message on the target serial console. This example shows how to use the arm cross-compiler using the environment configured for this purpose.

On this page you can find how to program and configure a SOM to boot in standalone mode, without the need of a system microSD card or an NFS server.

Please refer to our video tutorial How to program the NAND flash for a standalone boot for detailed instructions on how to do it.

For deploying an Embedded System, one of the most important configuration is the Network Interface configuration.

Once the Embedded Device is finally configured for stand-alone bootstrap, the network interface should be configured for reaching the device remotely via network connections like ssh, telnet, ftp, http, etc.

Check this page for further information on how to simply configure the network interface on SystemV (aka SysV) or systemd or watch our tutorial How to configure the network interface.

Every network adapter has a Media Access Control address (usually shortened to MAC address). A MAC address is a six-byte identifying number permanently embedded in the firmware of the adapter, and is readable by the network and the operating system of the device on which the adapter is installed.

The address must follow the standards set by the Institute of Electrical and Electronics Engineers (IEEE), which sets computer networking standards.

On this page it is described how to use the i.MX8M eFuse for programming and using the MAC address(es) and it applies to the following DAVE i.MX8M family products.

On DESK-MX8M-L (Software Development Kit for MITO 8M SOM) are available the following peripherals:

On this page you can find useful information and resources to system designers in order to design carrier boards hosting DAVE Embedded Systems system-on-modules (SOM).
