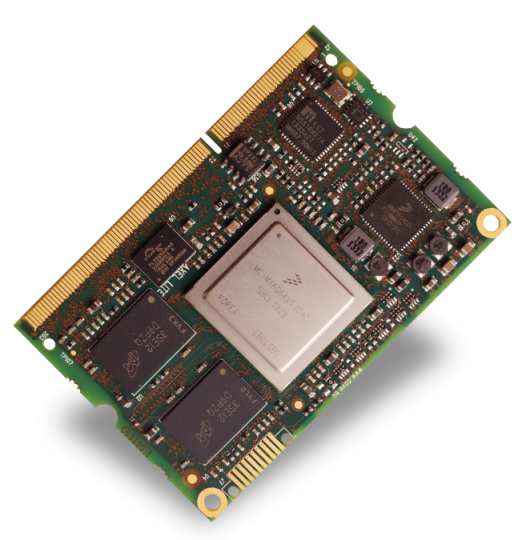

The SBC AXEL board is designed to allow embedded application developers to get up and running quickly on Dave's SOMs, giving them a head start on the total system design.
You can download SBC AXEL brochure by clicking here.
If you’re interested in SBC AXEL contact us to get a quotation.
The CPU of SBC AXEL is based on i.MX 6 application processor of our technology partner NXP.
This processor offers a feature and performance scalable multicore platform that includes single, dual and quad-core families based on the Cortex architecture, including Cortex-A9, combined Cortex-A9 + Cortex-M4 and Cortex-A7 based solutions.
The SBC AXEL platform provides a compact solution for any industry and can be easily interfaced with Plant Automation Control thanks to IEC-61131 SW language environment and/or other plug-ins like QT environment or multimedia GStreamer video applications.
SBC AXEL is completed with software solutions (SoftPLC, QT, RTOS) which permit to reduce overall system cost, and making SBCs ideally suited for deployment into a wide range of cost-sensitive and robust industrial applications SBCX supports a broad range of interface options dedicated to embedded applications, including Fast Ethernet support, SD card socket, LVDS display, USB, CAN, UARTs, GPIOs.
Visit this page for product highlights.
SBC AXEL provides the following features:
CPU: based on NXP / Freescale i.MX6 Solo/Dual/Quad core
USB Host and Device
SERIAL: RS232/422/485 and single CAN interface
ETHERNET: 1x10/100/1000Mbps
DISPLAY: 24bit RGB/dual LVDS interface / WIDE TM interface
VIDEO: HDMI and MIPI interfaces
TOUCH: resistive and capacitive
AUDIO: Stereo OUT and MIC in
CONNECTIVITY: Bluetooth and Wi-Fi
DIMENSIONS: 85x156mm - Standard DIN (9modules)
PSU: 12-24 VDC
Designed for industries: HMIs, SMART VIDEO devices, Digital Signage Platforms
SBC AXEL also provides ready-to-use software with the following features:
Operating Systems: Linux, Android
Software Platforms: QT, Yocto, Ubuntu
Industrial Applications: AXEL Software (LOGIC LAB IEC-61131 PLC runtime)

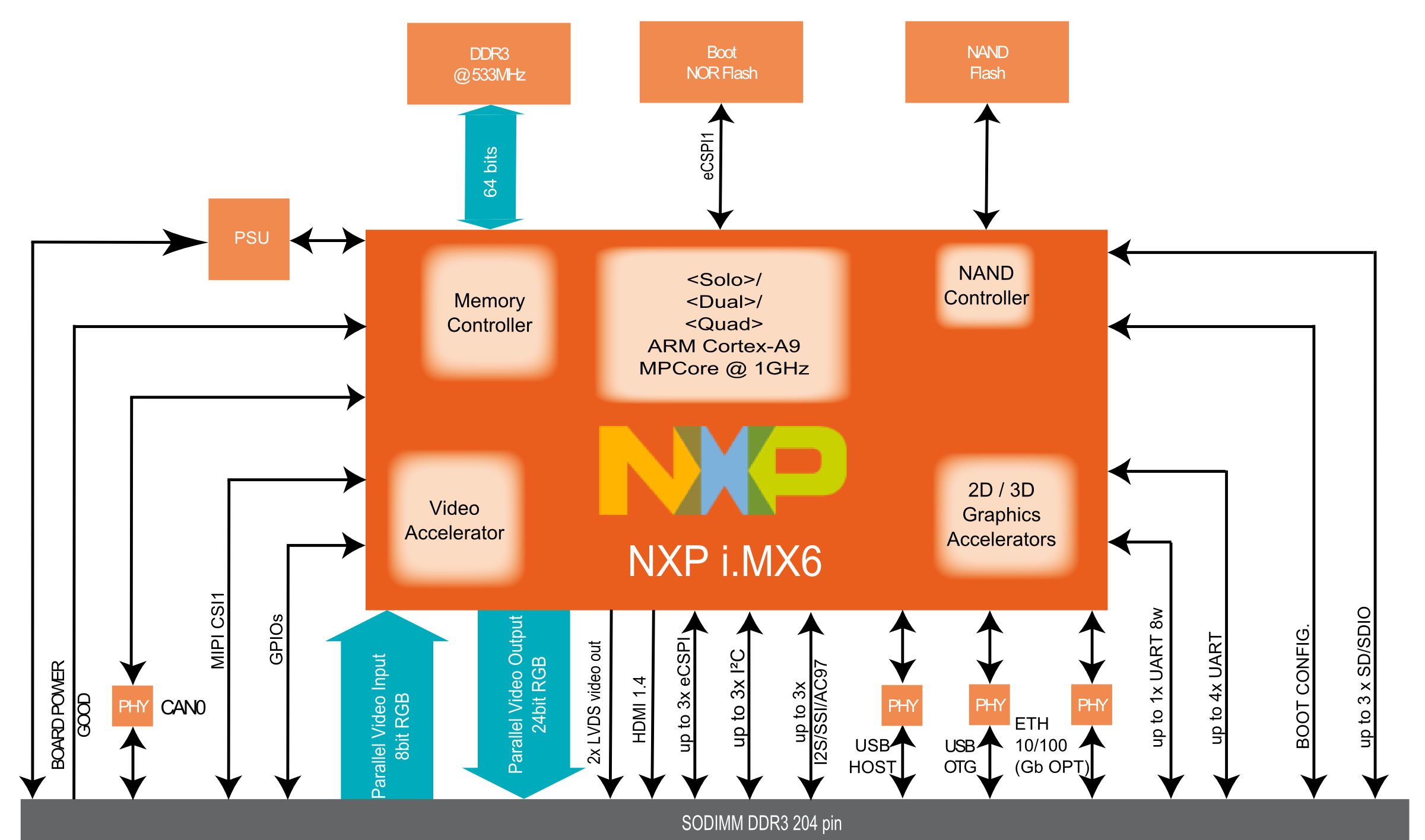

Visit this page for block diagram and features summary.
Visit this page to download SBC AXEL manual.
Visit this page for SBC AXEL block diagram.
Visit this page for SBC AXEL 3D model.
On this page you you will find all the technical documentation available for SBC AXEL.
For further information please contact helpdesk@dave.eu.
On this page you can find the whole marketing documentation available for SBC AXEL.
For further information please contact helpdesk@dave.eu.
SBC AXEL part number is identified by the digit-code table that you can find on this page.
SBC AXEL as a part of the i.MX6 family is included in the Longevity program by NXP.
DAVE Embedded Systems is committed to provide its products at least for the same period declared by the silicon vendor. DAVE Embedded Systems manages the components' obsolescence and components through a PCN program according to JEDEC standard (where possible) which may require the customer's support.
If you want to request support to our technical team please fill this form. After the submission, a ticket will be assigned. Our technicians will look after your request and they will respond you via email typically within 24 hours.
Visit this page for DAVE Embedded Systems' Return Material Authorization form.
Visit this page to discover all the components of the SBC AXEL kit.
Your SBC AXEL product, like every other DAVE Embedded Systems' development kits, will be identified by two codes: the Part Number identification code (P/N) and the Serial Number identification code (S/N).
These codes are printed on a label sticked to the box containing the kit and they are required to complete the registration process of the kit.
Visit this page for futher information on how to connect the system (a picture also shows you all the available connections) and run the first boot process.
SBC AXEL is built upon NXP i.MX6 processor. This page summarizes all the booting options available.
S3 is the hardware reset button for SBC AXEL.
On this page you will find an image that shows you where the reset button is located.
Visit this page for SBC AXEL products highlights.
DAVE Embedded Systems provides a DWS Wifi/Bluetooth Module for SBC AXEL.
Visit this page for further information about the Add-ons available for SBC AXEL.
Yes. On this page you can find an example on C code displaying the classic Hello World! message on the target serial console. This example shows how to use the arm cross-compiler using the environment configured for this purpose.
On this page we show you how to set up SBC AXEL with Qt Creator.
On SBC AXEL are available the following interfaces and connectors:
Visit this page for the SBC AXEL schematics and related documents (BOM and layout).
Visit this page for the mechanical specifications of the SBC AXEL board such as layout, and 3D drawing.
DAVE Embedded Systems integrates DESK-MX6-L to build your applications on SBC AXEL. The software is available in both Linux and Android versions.
