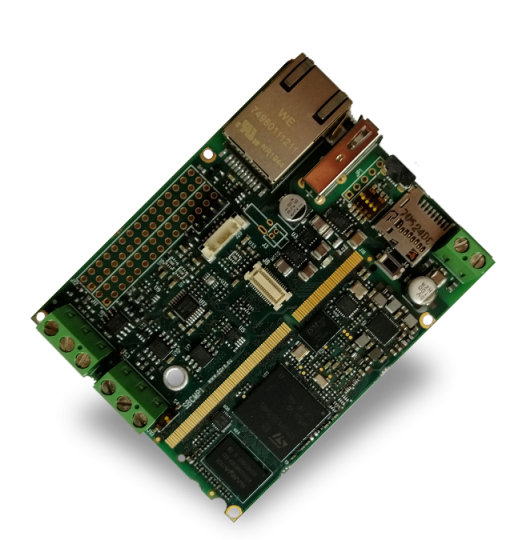

SBC ETRA

Processor: STM/STM32MP1 Dual core Cortex-A7 + 1x Cortex-M4

ETRA SBC is part of DAVE Embedded Systems'portfolio of Single Board Computer solutions it is based on ETRA SOM System On Module based on ST Microelectronics's System On Chip. ETRA SBC Single Board Computer has a 4 Modules DIN Bar and can be configured in order to be boxed with a finished product shape. This Single Board Computed is designed for long-term availability within the industrial qualification. EU or other countries' official certification is an optional for this Single Board Computer.

The ETRA SBC Single Board Computer has a wide range of peripherals available: EThernet 10/100Mbps, USB Host and device, SD card and power supply 12-24V. On the other side SBC Lynx has couple of DB9 or screw terminal connectors for RS232/RS485 and CAN interface. Included on the solution there are several expansion connectors for WIFI adapter, and expansion cards were it is possible to add relais, Analog to digital converters etc .

The Single Board Computer hosts onboard the ETRA SBC System On module integrates which integrates a dedicated Cortex-M4 for real time applications and up to 1GB RAM size and eMMC for several GB storage size. The ETRA SBC Single Board Computer has a number of expansion connectors useful also as an evaluation kit for the ETRA SOM System On module.

ETRA SBC System On Module is designed for industrial application. It can be provided with an enclosure and it is suitable for EU or other countries certification. DAVE Embedded Systems is available for the support you on this topic.

The ETRA SBC Single Board Computer is provided within a Software Development Kit which enable customers to get complete control of the board. The Software Development Kit is called DESK DAVE Embedded Software Kit and it is based on the ST Microelectronics official Software Development Kits.

DESK provides access to the source code of both the bootloader and the Linux Kernel.

Available features:

  • PSU 12V via 5.08mm screw terminal
  • 1xUSB Host
  • 1xUSB OTG for internal use (Cellular,...)
  • uSD
  • 1xETH 10/100
  • 2xRS232/485 on 5.08mm screw terminals
  • 1xRGB 24bits on ZIF connector
  • 1xMIPI DSI
  • PCIe available through adapter connector
  • EXPansion connector (SAI ports, CAN, PWM, UARTs, I2Cs, Timers,...)
  • WIFI based on Telit WE866C6
  • 4M DIN modules
  • Evaluation kit can be integrated with RGB 7"display

Software features:

  • Linux: DAVE Embedded Systems SW development Kit DESK-MP1-L based on ST release

3D

Block Diagram

Datasheet

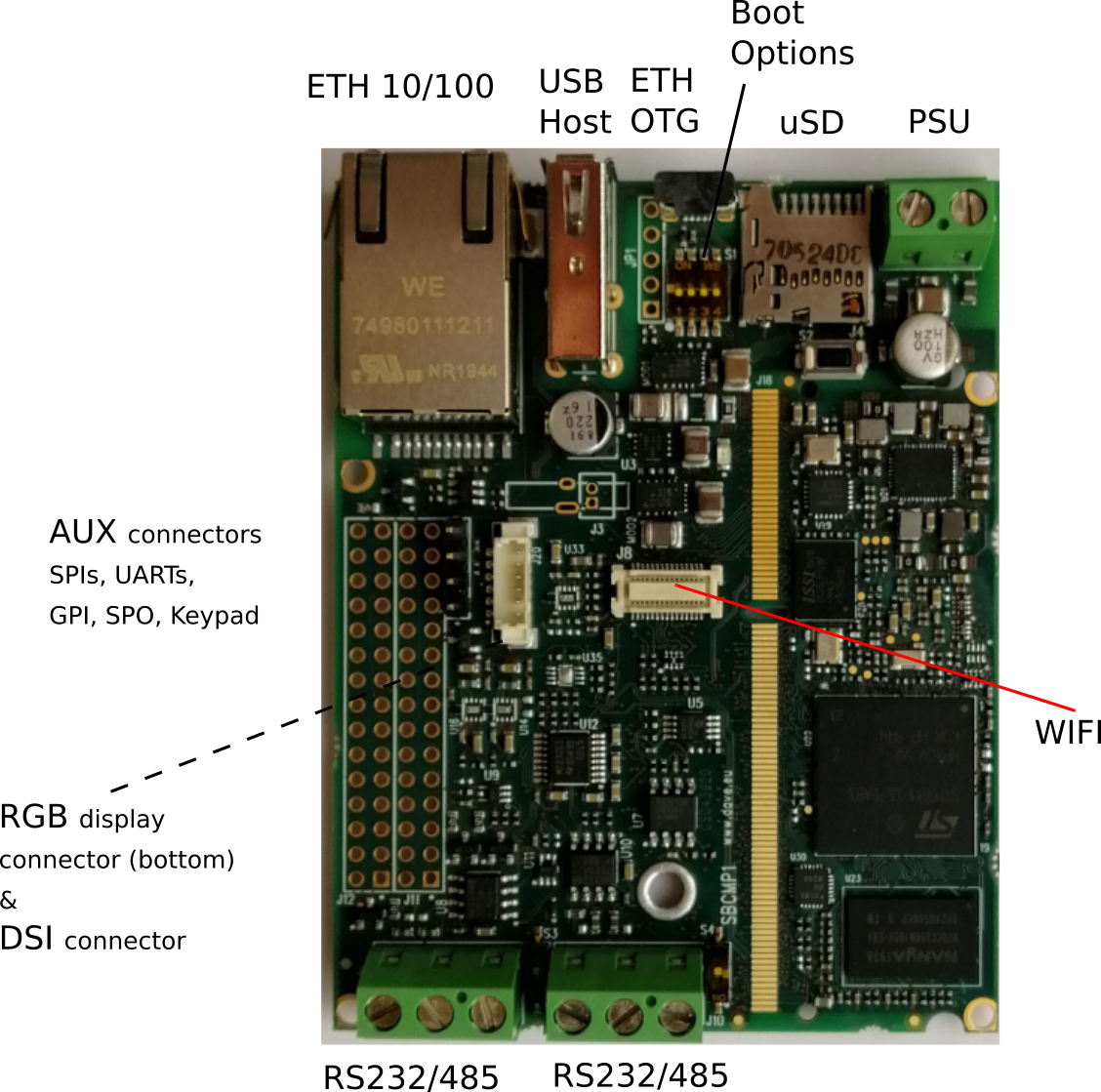

TOP View
BOTTOM View
Technical Information

CPU
  • ST STM32MP1
  • ARM Cortex A7 @ 600MHz or 800 MHz
  • Cortex-M4 @ 209MHz
  • single and Dual, GPU, Security
Memory
  • eMMC or NAND SLC: All sizes, on request
Interfaces
  • Ethernet: 10/100 Mbps
  • 2xUSB:
    • USB 2.0 HOST
    • USB 2.0 OTG
  • Storage: microSD
  • Power:  12-24 VDC
  • Reset
  • Supported SOM: ETRA SBC based onSTM STM32MP1
  • WIFI & Bluetooth adapter
  • RS232/RS485
  • MIPI DSI & RGB 24bits port: Available on BOTTOM side
  • Expansion connectors:
    • Audio, CAN, GPIOs, Buttons. LEDs, PWM, I2C, SPIs
  • Serial Debug
  • Backup Battery
Mechanical
  • Size: 67.5mm x 88mm (Standard 4M DIN Bar size)
  • Temperature range:
    • Commercial (0°C / +70°C) temperature range
    • Industrial (-40°C / +85°C) temperature range
Power Supply
  • 12-24 VDC



Operating Systems

For ETRA SBC Embedded Software information and advanced product usage refers to: DESK-MP1-L
