MITO 8M Mini - i.MX8M Mini

Prozessor: NXP i.MX8M Mini / i.MX8M Nano

NXP i.MX8M Mini / Nano SOM ist das neue Quad-Core-ARM-Cortex-A53-CPU-Modul der Spitzenklasse von DAVE Embedded Systems, basierend auf dem aktuellen NXP i.MX8 Mini / Nano-Anwendungsprozessor. Die Hintergrundidee mit diesem neuen SOM von DAVE Embedded Systems ist es, Kunden eine VOLLSTÄNDIG kompatible Lösung mit der bestehenden NXP i.MX6-Lösung bereitzustellen. Mit diesem Konzept können Kunden sofort auf diese neue Lösung aufspringen und erhalten:

  • Steigerung der Leistung
  • erhöhte Produktlebensdauer
  • aktuelle und gepflegte SW-Lösungen

Die Verwendung dieses Prozessors ermöglicht eine umfassende Differenzierung auf Systemebene für neue Anwendungen in vielen Industriebereichen, in denen hohe Leistung und ein extrem kompakter Formfaktor (67,5 mm x 43 mm) Schlüsselfaktoren sind. i.MX8 Mini / Nano SOM bietet große Rechenleistung zu einem vernünftigen Preis. Aus diesen Gründen ist es die richtige Alternative zu NXP i.MX6 Solutions. Die Hauptmerkmale dieses neuen Produkts sind:

  • ARM Cortex A53 MPCore + Cortex-M4-Technologie
  • eMMC oder NAND SLC an Bord
  • Dualer LVDS-Ausgang an Bord
  • Ermöglichung massiver Computeranwendungen dank LPDDR4-RAM-Speicher mit großer Bandbreite von bis zu 2 GB (4 GB OPT)
  • VOLLSTÄNDIG kompatibel mit i.MX6 AXEL Lite SOM
  • Reduzierte Trägerkomplexität: 1xPCIe, duales MIPI, SDIO, USB2.0, Gb ETH, GPIOs, 3xSAI
  • H264/H265-Videokodierung und -dekodierung
  • Verfügbare NAND-Schnittstelle zur Kostenoptimierung

3D

Block Diagram

Datasheet

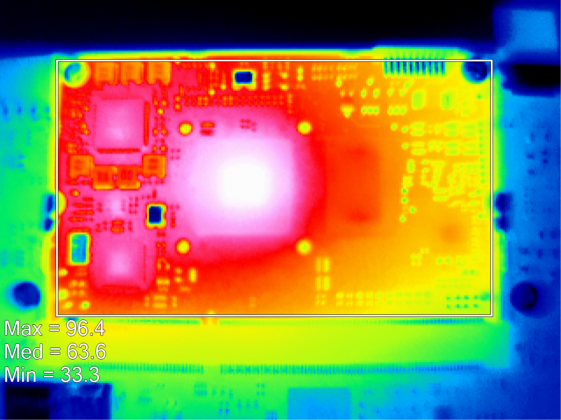

TOP View
BOTTOM View
Technical Information

CPU
  • NXP i.MX8M Mini
  • Nano up to Quad core + Cortex-M ARM Cortex A53 MPCore
Supervisor
  • On-board power supply supervision
  • and power sequencer
Memory
  • SDRAM: Up to 2GB LPDDR4, x32 data bus width (Mini) and x16 (Nano)
  • eMMC : Bootable up to 64GB
  • NAND :  Available interface on edge connector
  • NAND interface and SD interface are available alternatively on SODIMM connector depending on which flash is mounted on board
Interfaces (full-spec models)
  • LAN: Ethernet 1000 Mbps (PHY on board)
  • UART: up to 4x UART ports
  • USB:
    • 2x 2.0 OTG port (PHY on board) - Mini
    • 1x 2.0 OTG port (PHY on board) - Nano
  • PCIe : 1x PCIe interafaces Gen2
  • SDIO: 1x SDIO/MMC
  • Expansion Bus :  NAND controller available
  • Audio: up to 3 SAI interfaces (1x on EXP connector)
  • Video Output:
    • Dual LVDS interfaces 24 bit
    • 1x HDMI
    • H265 decoder/encoder engine up to 1080p60
  • Video Input : Up to 1xMIPI CSI port 4 lanes
  • Debug : JTAG IEEE 1149.1 Test Access Port
  • Other:
    • up to 3x I2C channels
    • up to 2x SPI channels
    • GPIOs with interrupt capabilities
Mechanical
  • Connectors: SODIMM 204 pin
  • Size: 67.5mm x 43mm
  • Temperature range:
    • Commercial (0°C / +70°C) temperature range
    • Automotive (-40°C/+125°C) temperature range
    • Industrial (-40°C / +85°C) temperature range
Power Supply
  • Single 3.3V, on-board voltage regulation
Software
  • Bootloader: U-Boot, Secure Boot
  • Multitasking: Linux 4+, Android 6+, Debian



Evaluation kits

The official evaluation kit for MITO 8M Mini SOM. This solution includes a SOM and all necesary for the fast and easy evaluation
