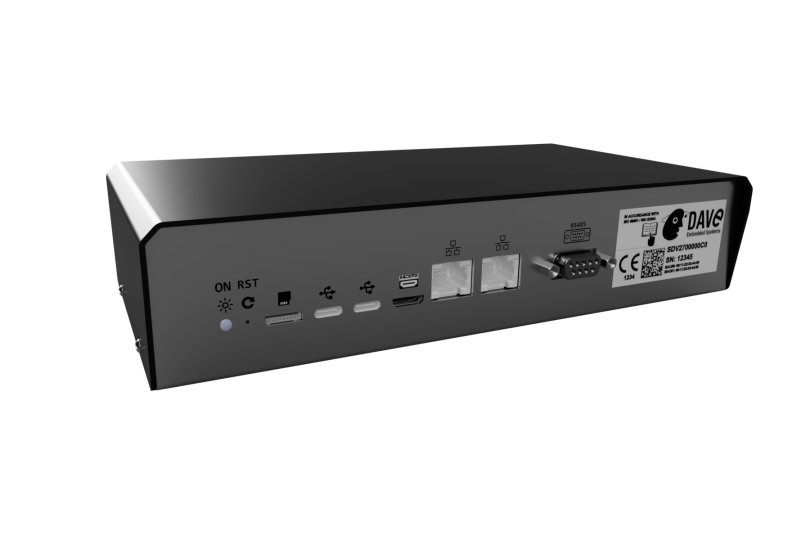

SBC ORCA MED - SDV27

CPU

• NXP i.MX8M Plus
• ARM Cortex A53 Dual/Quad cores 1.8GHz
• MCU Cortex-M7 + GPU GC7000

Video

• 3D GPU GC7000
• 1080p60 H265, H264, VP9, VP8 decoder
• 1080p60 H265, H264 encoder

Machine Learning

• Neural Processing Unit 2.3 TOPS

Supervisor

• On-board power supply supervision
• Power sequencer
• Watchdog and RTC

Cache

• L1: 32Kbyte instruction, 32Kbyte data
• L2: Unified data/instruction, 512 K

Security

• Secure Boot and SE050 Edge Lock on board for IoT secure applications

Memory

• SDRAM: Up to 8GB LPDDR4, x32 with ECC
• Solid State Disk (based on eMMC): from 8 GB to 64 GB, other sizes on request.

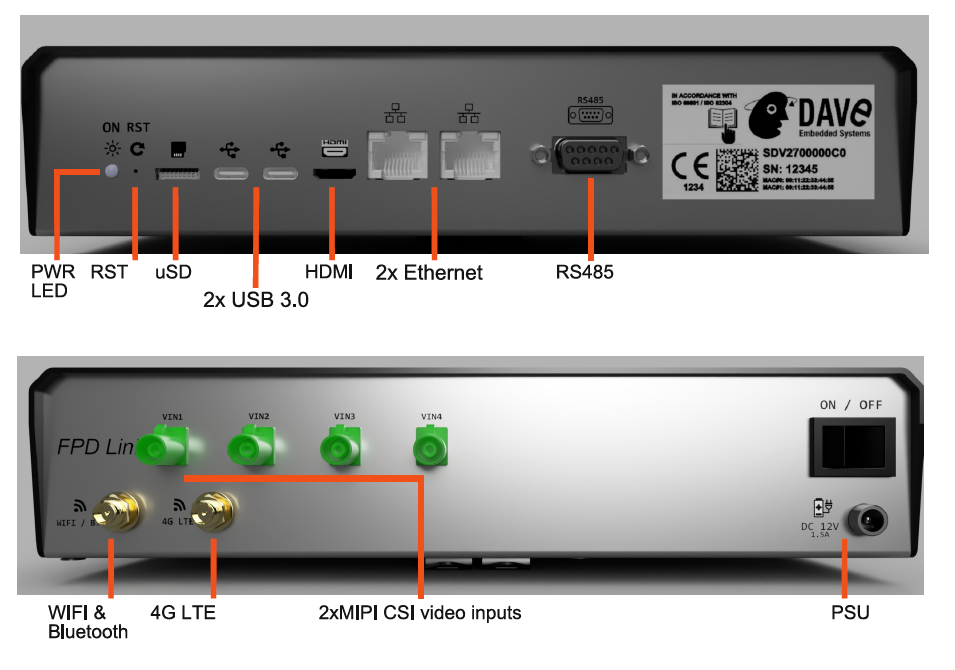

Interfaces

• LAN: 2x Ethernet 10/100/1000 Mbps (PHY on board with 1xTSN support) on RJ 45 connector
• WiFi 802.11 a/b/g/n/ac (dual band 2.4GHz and 5GHz) with SMA antenna connector
• Bluetooth BLE 5 with low energy (LE) support with SMA antenna connector (shared with WiFi)
• 4G LTE Cat.1 with SMA antenna connector
• USB: up to 2x 3.0 OTG port (PHY on board) on USB-c connector
• SDIO: 1x SDIO3.0 - MMC 5.1 on uSD connector
• Serial Bus: RS485 on DB9 connector
• Video Output: 1x HDMI on micro HDMI connector
• Video Input: 2x MIPI CSI 4 lanes with 2xISP on 4 FPD link connectors

Mechanical

• Aluminium box
• IP 20
• Size (WxLxH): about 230 x 130 x 50 mm with connectors
• VESA 75mm and DIN bar mount optionals
• Temperature range: +5°C / +45°C
  • Commercial (0°C / +70°C) temperature range on request
  • Industrial (-40°C / +85°C) temperature range on request

Power Supply

• 12V, 1.5A AC/DC Power adapter
• On/Off switch
• Reset button
• Power led

Software features

• Watchdog: HW and SW watchdog for board block
• Power Management: low power management, power outage and reboot detection,
• Data retention: RTC lasting 1y, RTC fail detection, NTP USB Service: secure log extraction, configuration in/out, system and application update
• Web UI: web application for system and application configuration (local and remote)
• Physical UI: hw and sw buttons
• Cybersecurity: OS hardening, user/password/cert management, penetration test on request
• Production: product traceability & commissioning

• Power Supply
• CPU connector
• JTAG
• Ethernet
• Console
• UARTs
• micro SD
• USB ports
• LVDS

• Touchscreen
• HDMI
• MIPI
• PCIe
• CAN
• Audio
• DWM
• GPIOs
