SBC SDV25

Processor: Expressif/ESP32

All-in-one Embedded Single Board Computer

Single Board Computer is a SUCCESS STORY where DAVE Embedded Systems' capabilities have created a complete solution for those customers who want to focus on their unique added value, without investing on deep technology such us embedded linux and HW design.

A Single Board Computer (SBC) is a complete embedded system built on a single circuit board that contains fully industrial functional components, like microprocessor(s), memory, input/output (I/O) and other features required of a typical embedded computer. DAVE Embedded Systems has designed a new range of Embedded Single Board Computers extremely small and simple, versatile and easy to use.

The SDV25 IoT Gateway is a complete system which provide easily a remote and seamless connection within ToloMEO Cloud interface to your remote device. The connection with the remote system can be provided using a standard industrial bus such us RS232, RS485 and CAN. Over this HW interfaces standard protocols can be configured such us ModBUS 485, CAN OPEN and custom communication protocols. The connectivity is provided via WIFI and/or LTE. Automatic backup services and automatic provisioning are services available through ToloMEO Edge and Cloud integration.

The ToloMEO Edge software takes care of the core functionalities needed for a medical or industrial device like clock management, power management, updates and cybersecurity.

Thans to the ToloMEO integration the cyber security protection is available and can be provided according to standards IEC 62443. ToloMEO IIoT Services provides a number of ready to use solutions which enable customers to create their own cloud solution for IoT, OTA Updates, Machine Learning, Blockchain solutions for Digital Contracting and Embedded SW management.

EASY HARDWARE:

CPU: based on Expressif ESP32-C3-WROOM-02

READY SOFTWARE:

Software Platforms: ESP-IDF
Industrial Applications: ToloMEO Edge

Datasheet

CPU	Expressif ESP32 Single-core 32-bit RISC-V CPU, up to 160 MHz 400 KiB SRAM, 384 KiB ROM, and 8 KiB RTC SRAM
Interfaces	Wi-Fi 2.4 GHz (IEEE 802.11b/g/n) Bluetooth 5 (LE) 4G LTE Cat.1 with integrated antenna (optional) USB: debug connector on 3x2x2.54mm pin strip connector (optional adapter with micro-USB connector) Serial Bus: RS232, RS485, CAN or I2C on Phoenix 5.08mm connector

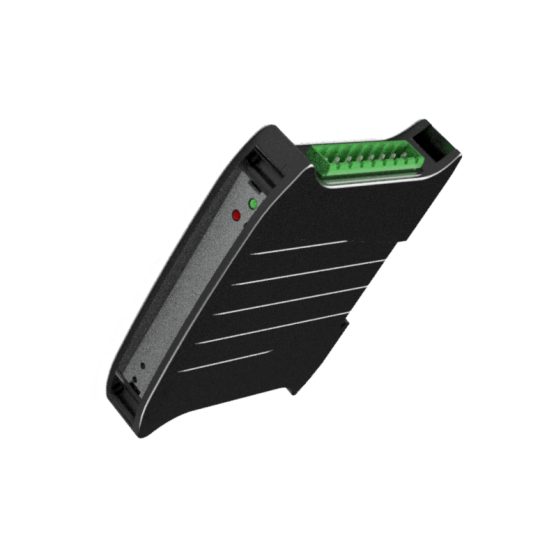

Mechanical	Plastic box Size (WxLxH): 18x100x80mm 1 module DIN Bar Temperature range: Industrial (-40°C / +85°C)
Power Supply	7-28VDC Power Reset button Power led 1x programmable led 1x programmable button
Software features	Watchdog: HW and SW watchdog for board block Power Management: low power management, power outage and reboot detection Data retention: NTP USB: software debug Physical UI: hw and sw buttons Cybersecurity: OS hardening, user/password/cert management, penetration test on request Production: product traceability & commissioning
Additional services	3D linear accelerometer and 3D magnetic sensor Enclosure design and customization Application SW design based on customer's specifications
