Home > Shop > Evaluation kits > BORA Lite SOM Evaluation Kit

BORA Lite SOM Evaluation Kit

The BORA Lite Evaluation Kit is the fastest and most complete solution to start developing applications based on the BORA Lite SOM, DAVE Embedded Systems’ module built around the Xilinx Zynq‑7000 (XC7Z020). The kit includes everything you need to get started immediately: a pre‑assembled SOM, the BoraXEVB carrier board, power supply, adapters, and a microSD card preloaded with the factory Linux BSP.

Designed for immediate startup, the kit allows developers to quickly test the module’s features, interfaces, and performance — from DDR3 SDRAM to NOR/NAND flash, as well as Ethernet and UART connectivity. The first boot is performed via microSD and gives access to the serial console so you can begin development right away.

In short: a powerful, complete, and professional kit, ideal for transforming the capabilities of the BORA Lite SOM into advanced prototypes rapidly, reducing complexity and accelerating the design phase.

€ 699.00 (Without tax)

Description

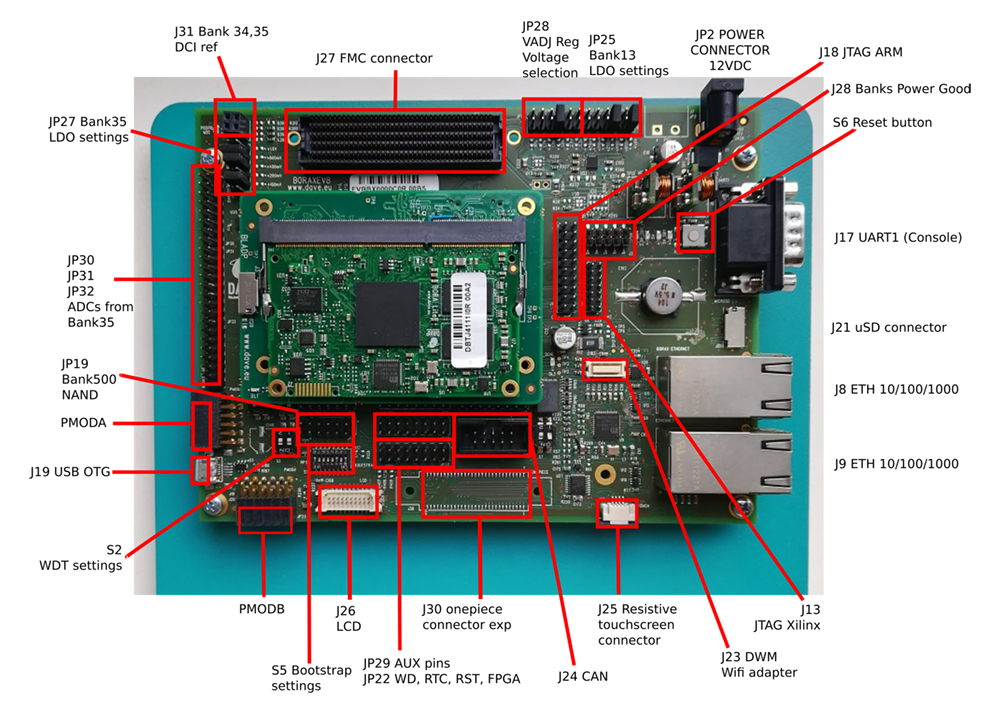

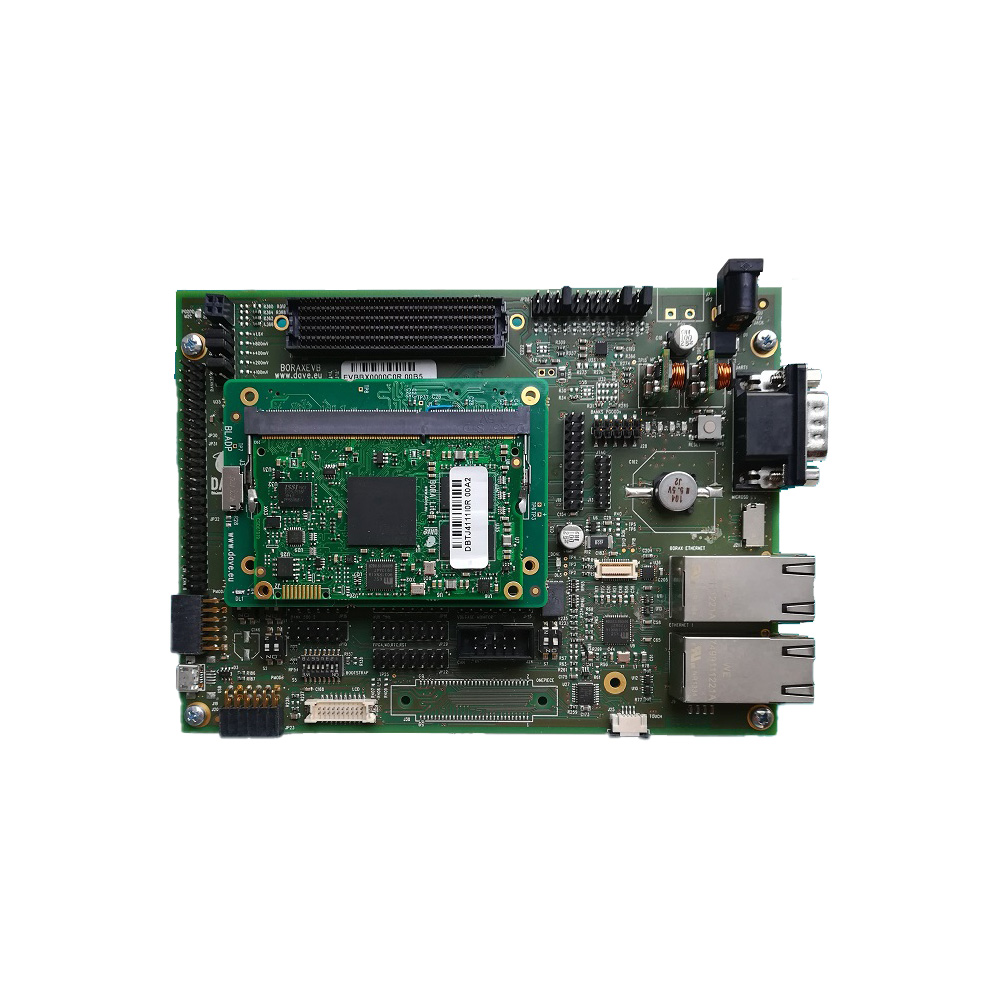

BORA Lite Evaluation Kit is the official support platform for evaluation the BORA Lite SOM. This evaluation kit includes:

the hardware with all useful items (power supply, cables, etc)
The software pre-installed in a SD card
The right to access to DAVE Embedded Systems’ repositories
A live session (typically 4 hours) with tech team from DAVE Embedded Systems for:
a) Virtual Machine configuration and first Hello World
b) Evaluation board schematics review for fast hardware design startup
Carrier board design review: once your board schematics are ready, we are available for review the design together and provide a first Device Tree Structure example based on your design
